Doheny Audio Mini 3PDT 9Pin Latching Foot Switch Guitar Effect PCB

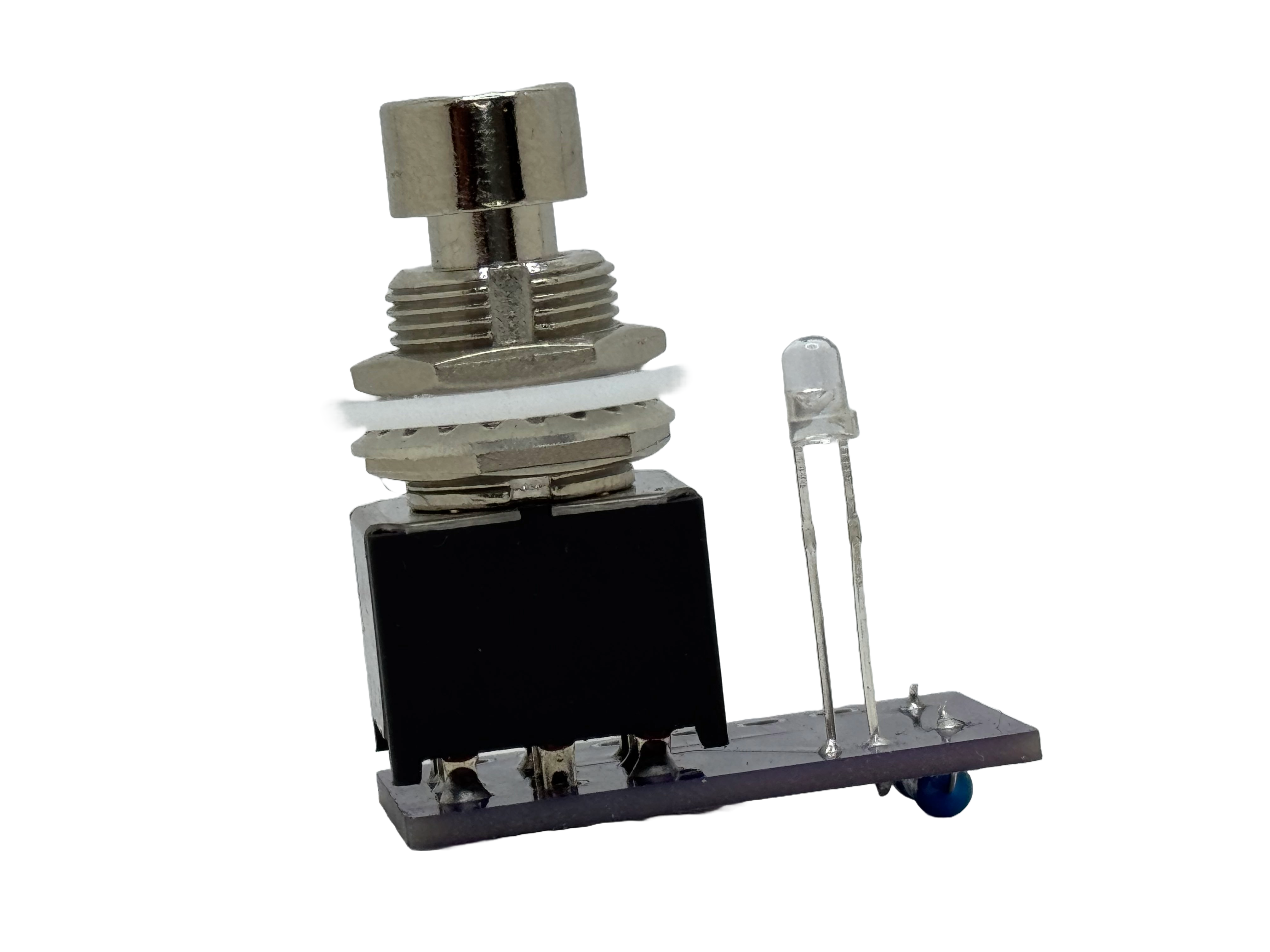

The Doheny Audio True Bypass PCB with Mini 3PDT 9-Pin Latching Foot Switch is an excellent foundation for building a variety of guitar pedals. The PCB comes with a pre-mounted LED for added convenience.

Features:

• Pre-mounted LED on the PCB

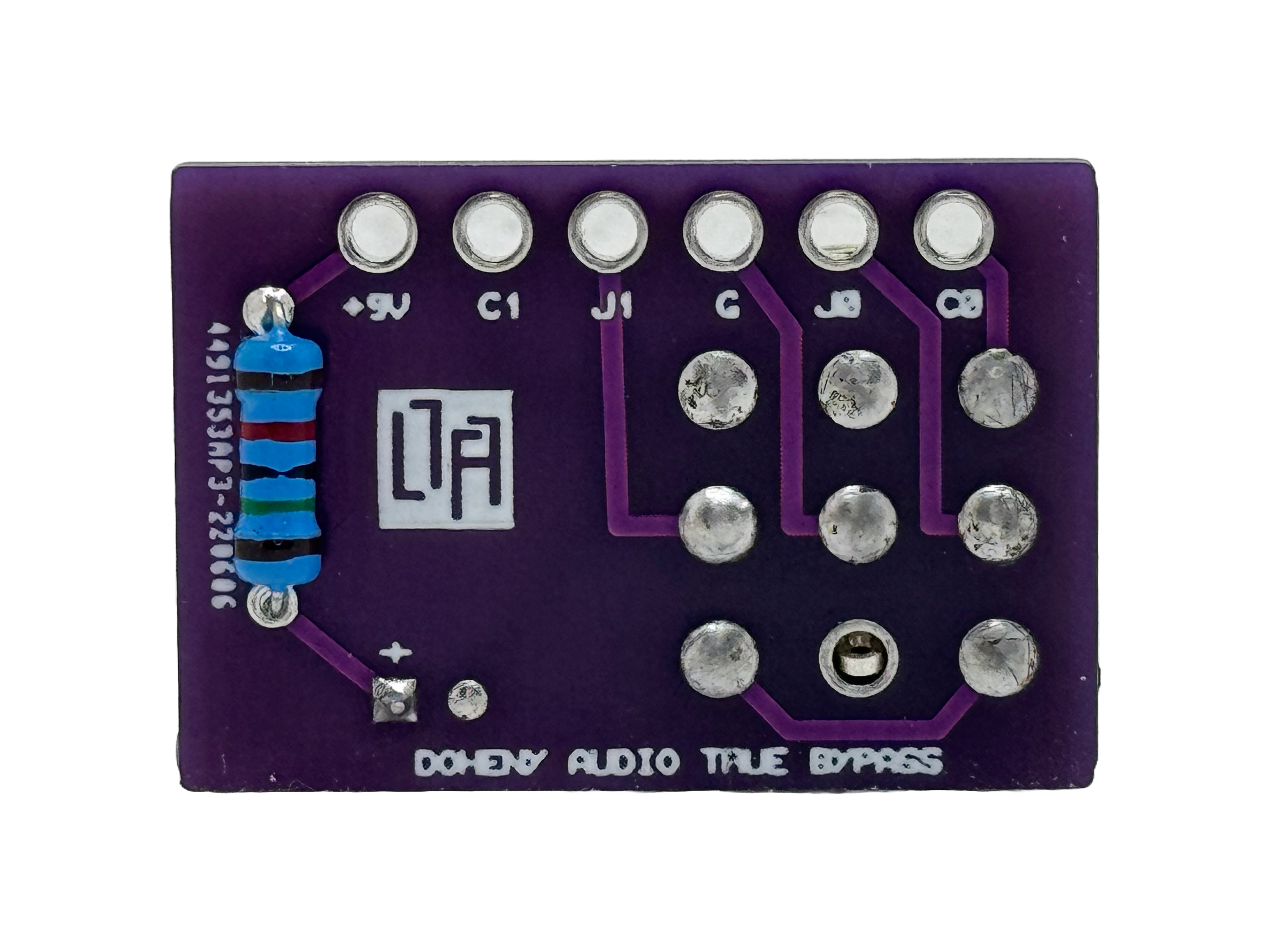

PCB Connections:

+9: Positive power supplyC1: Circuit input connectionJ1: Input from the guitarG: GroundJ0: Output to the guitarC0: Circuit output connection

Dimensions:

• Switch Size: 15mm x 17mm

• PCB Size: 3.2cm x 2.2cm
