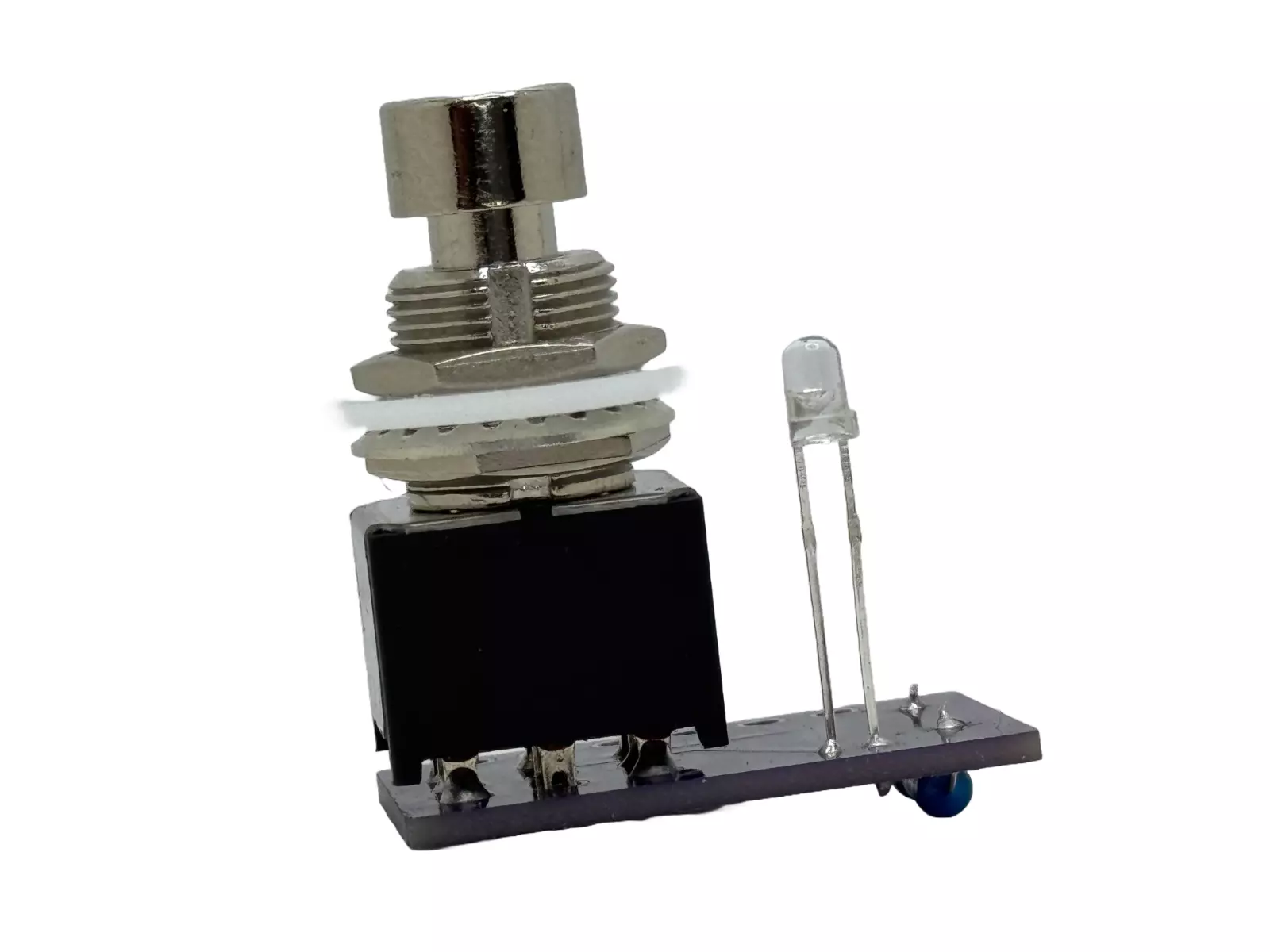

3PDT Footswitch Daughterboard

The Doheny Audio True Bypass PCB is the perfect foundation for building and wiring a wide range of guitar pedals. It includes a pre-mounted LED for added convenience and comes with a full wiring diagram to help you set up your footswitch quickly and accurately.

Features:

• Pre-mounted LED on the PCB

• Includes wiring diagram for easy setup

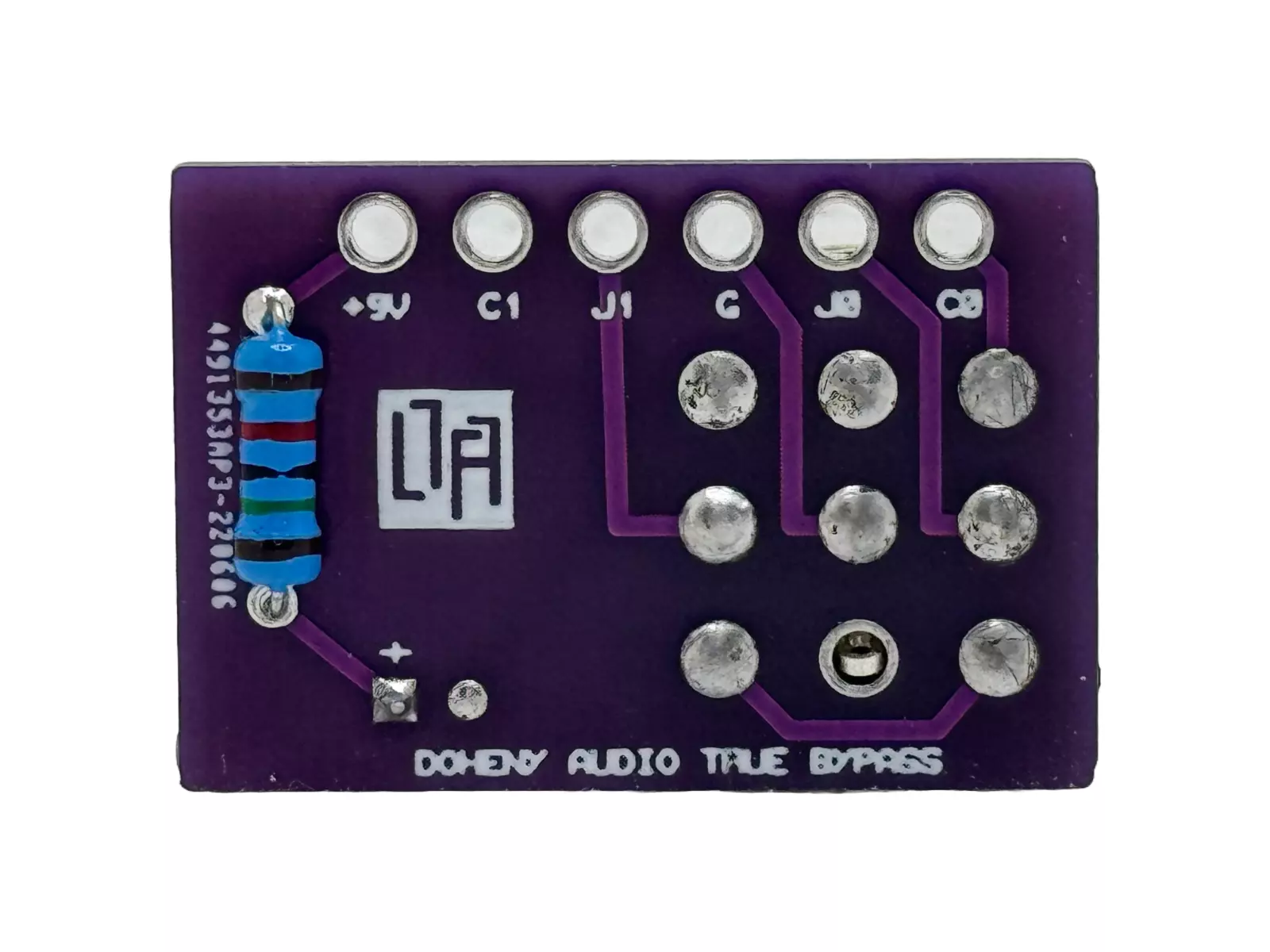

PCB Connections:

• +9: Positive power supply

• C1: Circuit input connection

• J1: Input from the guitar

• G: Ground

• J0: Output to the guitar

• C0: Circuit output connection

Dimensions:

• Switch Size: 15mm x 17mm

• PCB Size: 3.2cm x 2.2cm
